NodalDOFRotation
How To
How to rotate nodal DOF from the default Reference system to the active one is described as follow- create a new coordinate system if necessary or activate the already present cylindrical or spherical , command
- select the nodes the DOF you want to rotate
- acivate the coordinate system you want to rotate the DOF to
- issue the NROTAT command
Display
it is possible to display the nodal DOF using the setting available by commant /PSYMB
-- RobertoBernetti - 20 Jan 2012
| I | Attachment | Action | Size | Date | Who | Comment |
|---|---|---|---|---|---|---|
 png |

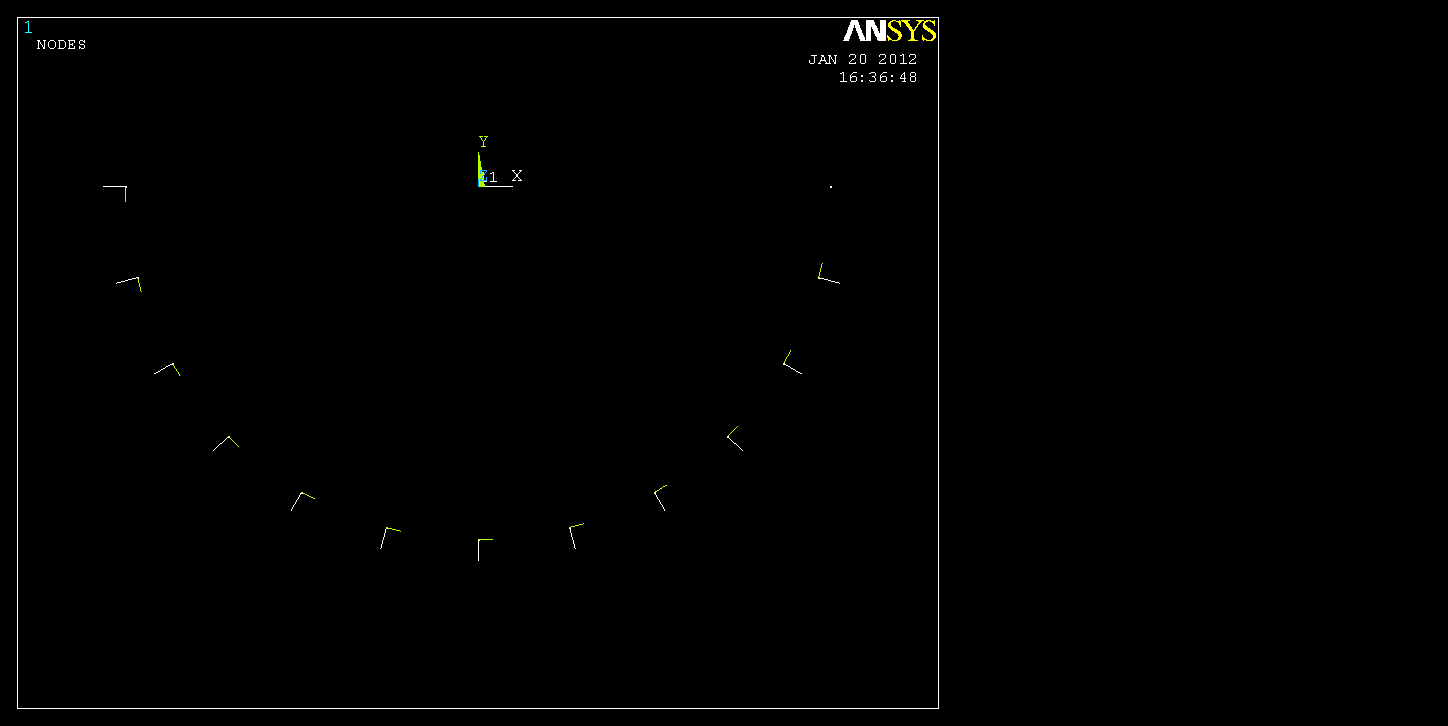

DOFrotate.png | manage | 7 K | 20 Jan 2012 - 15:39 | UnknownUser | Grafico dei DOF nodali |
